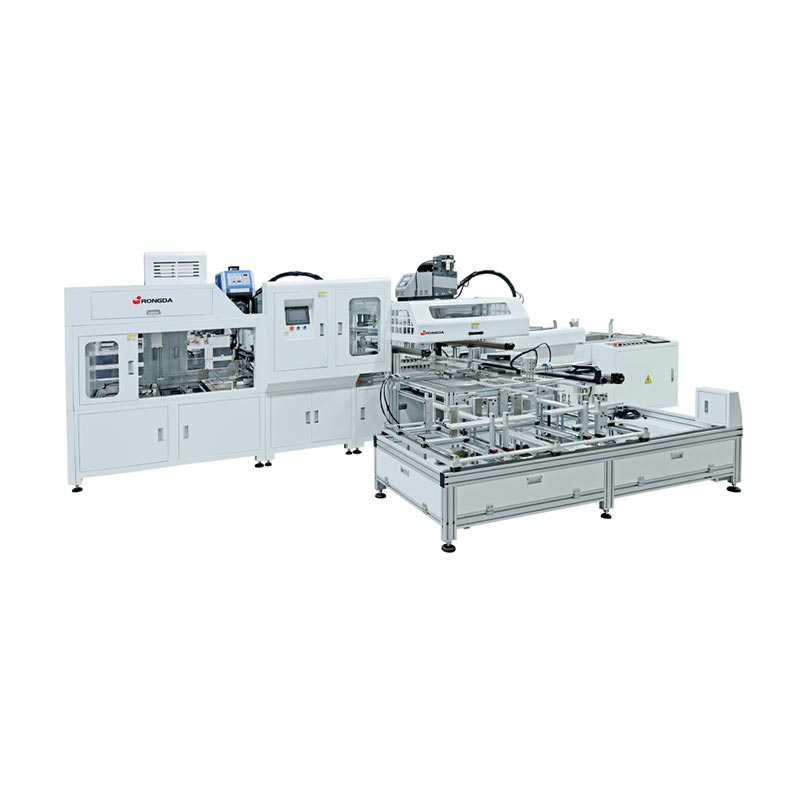

Collapsible Box Wing Assembly Machine

The FB1000ZS Automatic Collapsible Box Wing Assembly Machine is a professional device offered by Rongda factory, meticulously developed to meet current market demands. Equipped with automated gluing and folding functions, it precisely completes the four triangular folding processes on the wings. It can be operated in conjunction with a folding box assembly machine or independently to meet diverse production needs.

FB1000ZS Automatic Collapsible Box Wing Assembly Machine adopts imported parts and high precision glue groove system to ensure the high precision and stability of the assembly process, and significantly improve the production efficiency and operation convenience of the folding box. The unshaped folding box can be stored flat, which can save more than 70% of the warehouse space compared with the traditional fixed-shape box (e. g. Hard Box) . The reduction in size also significantly reduces transportation costs. This function enables enterprises to order flat pack folding boxes in batches, effectively alleviate the storage pressure of finished product packaging, and optimize supply chain management.

Furthermore, the flat, six-sided structure of the unfolded folding box provides an excellent brand display platform. Whether it is high-end printing processes such as hot stamping, UV, embossing or embossing, they can all be perfectly presented here, helping luxury goods, cosmetics, electronic products and high-end gifts to create an eye-catching "first-glance" luxury effect, and meet the high-end market's stringent requirements for packaging quality.

Rongda Packaging Equipment Co., Ltd. has established an experienced pre-sales and after-sales service team. Our company has been in this industry for more than 20 years, has a wealth of experience. Our machines enjoy a one-year warranty period, and equipped with professional after-sales staff. Make sure you are comfortable using the machine. From customer consultation, scheme customization to equipment delivery, post-commissioning and maintenance, professionals provide one-to-one and precise service throughout the process to ensure the effective docking and service of each link.

By combining standardized service processes with personalized response mechanisms, we rigorously safeguard our customers' core interests. From in-depth technical consulting support to rapid after-sales maintenance response, we comprehensively reduce customer decision-making costs and operational risks, helping them maximize their investment value.

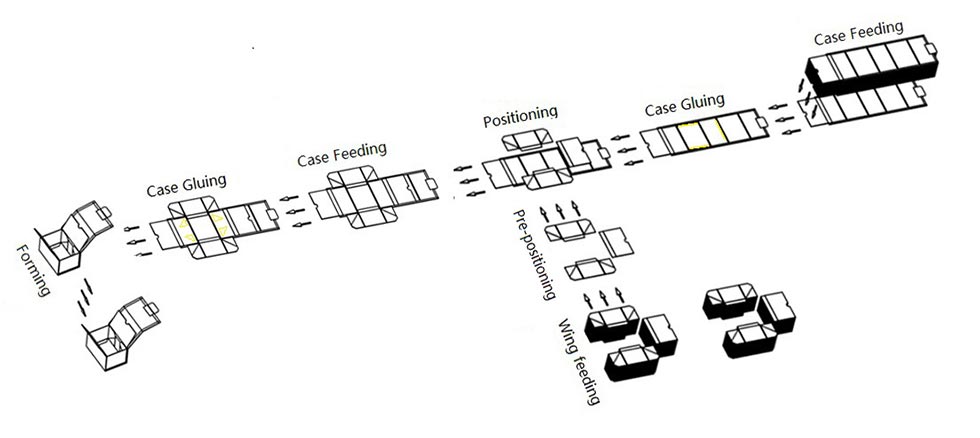

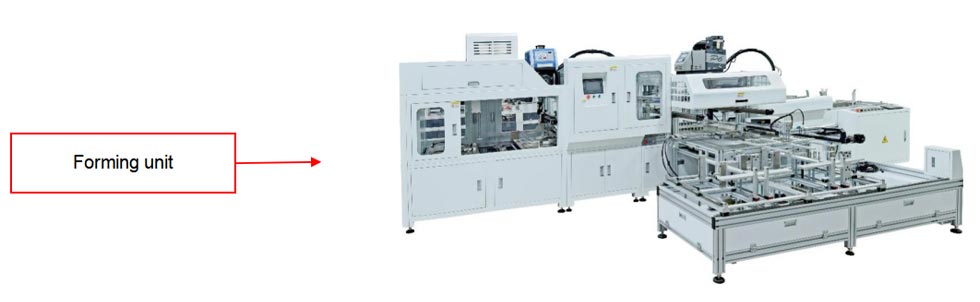

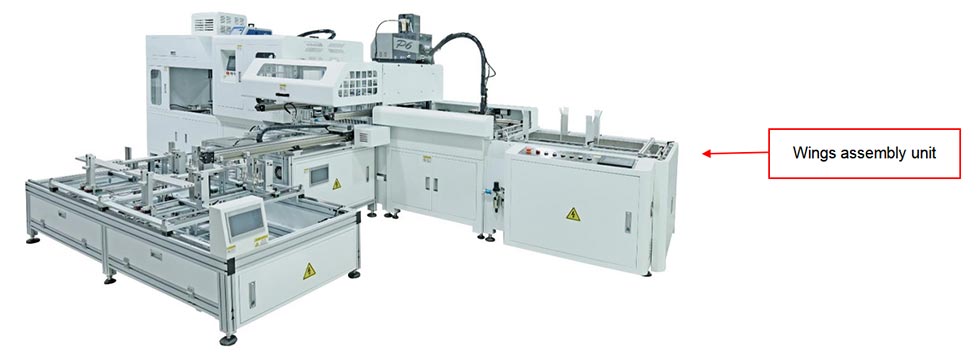

Production flow:

Product Parameter (Specification)

Main Technical Parameters:

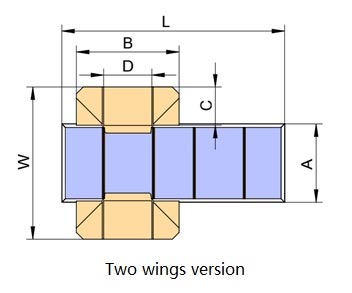

Case size(L*W)	Max. 1000x690, Min. 100*200mm
Case Width(A)	90-450mm

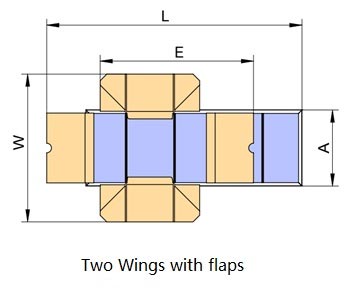

Wing size(B)	100-650mm
Wing size(C)	30-120mm
Wing size(D)	Min.60mm
Wing and flap relationship(E)	300-650mm
Accuracy	+/-0.1mm
Speed	10-15pcs/min
Power	220V 1P 50Hz/6KW
Air supply	0.6Mpa
Machine weight	1200kg
Machine dimension(L×W×H)	L6200×W3200×H2000mm

Main configuration:

Servo Motor	Panasonic
Servo Driver
PLC
Photosensor
Vacuum Switch
Power Switch	MeanWell
Proximity Switch	Schneider Electric SA
Linear Module	CCM
Hot melt glue machine	JING TAI
Pneumatic Element	AIRTAC

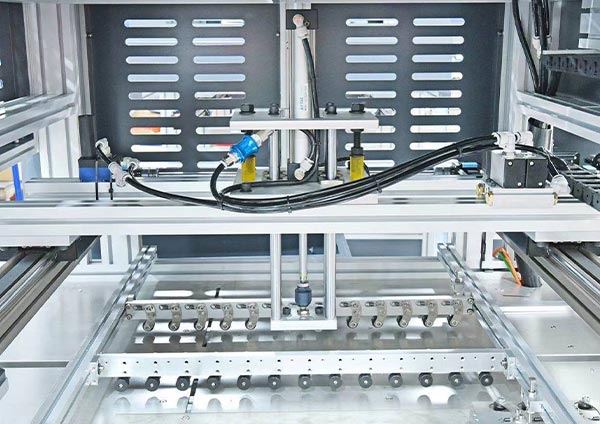

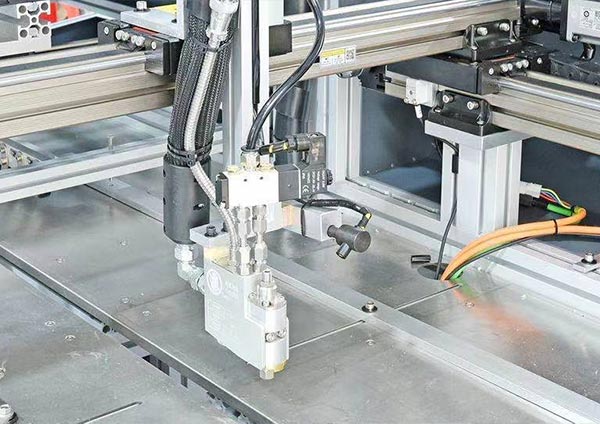

	Case feeding section Adopting a downward suction structure to solve the problem of double or multiple case feeding and ensures that the case does not scratch.		Gluing section Gluing is controlled by servo motor, which makes the gluing more precise. The flexible line of gluing can be set freely on the screen according to product needs.

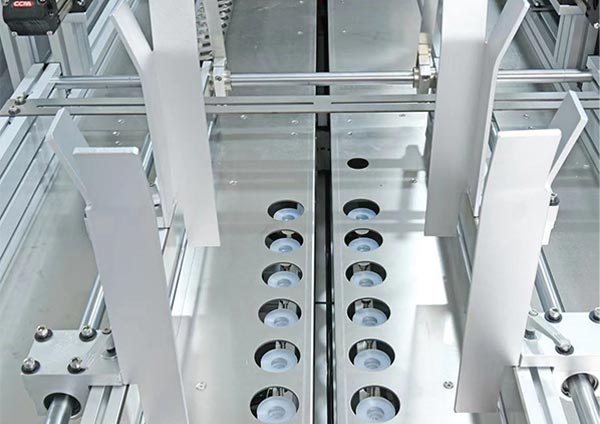

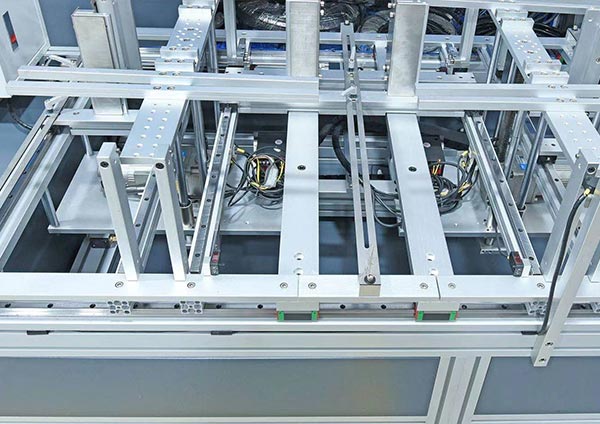

	Wing feeding section Adopting a four-station lifting table top feeding structure. It can feed the mid board and side wings at same time. The book style box can be assembled by replacing the feeding module.		Positioning section Positioning is controlled by servo motor, which makes the positioning more precise.
